Ball Valves


Ball Valves


Our manually operated Ball Valves are precision made using high grade brass metal. These ball valves are specially manufactured to handle media like oil, gas, and water. Our ball valves has RF, RTJ, and BW type of end connections, which make it suitable for industrial as well as domestic application.


Specifications

Size 4inch, 5inch
Type Valves
Material Brass
Application Gas Fitting, Oil Fitting, Water Fitting
Color Golden
Pressure High Pressure, Low Pressure, Medium Pressure
Structure 1war, 2way, 3way, 45way

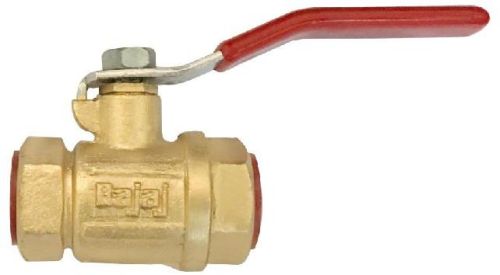

Brass Ball Valve

Brass Ball Valve
Brass D/C Ball Valve Two Piece Design with PTFE seats gland packing liver operated Screwed female ends Tested 300 PSIG Hyd.


Bronze Ball Valve

Bronze Ball Valve
  • With S.S. (AISI-304) Forged ball and S.S.(AISI-410) Stem and teflon gland packing, screwed female ends
  • HYD. - Tested 300Lbs.
  • Size- 15mm to 100 mm


Cast Iron Ball Valve

Cast Iron Ball Valve
  • Bajaj Cast Iron Ball Valve (Screwed & Flanged Ends)
  • Flanged to ASA 150 BS - 10
  • Table D/E and F full port S.S (AISI 304) ball and S.S (AISI 410)Stem as per IS : 9890
  • Blow Out Proof stem
  • Test Pr.- 500 psig. Hyd
  • Size - 15mm to 100mm


Investment Casting Ball Valve

Investment Casting Ball Valve
  • Bajaj Investment Casting Ball Valve Screwed female ends, ASIS-410Stem
  • RTFE gland packing & S.S. (AISI-304) Foreged ball
  • HYD tested - 800 lbs.
  • Size - 15 mm to 50 mm
