Y Type Strainers


Y Type Strainers

Our motto is to deliver qualitative products to the end user and for this, we check each product at all stages. Leveraging on our experience, we, as a supplier of Y Type Strainers have placed ourselves in the upper echelons of the industry.

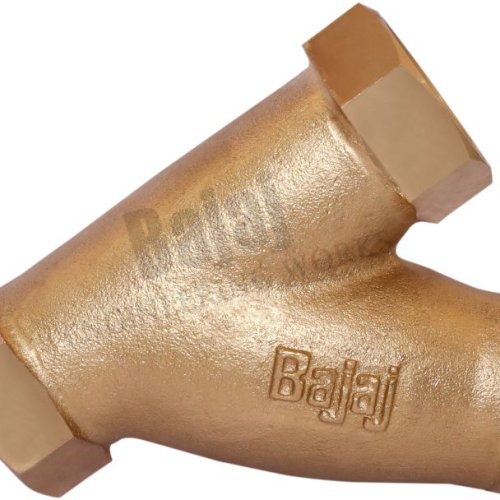

Bronze Y Type Strainers

Bronze Y Type Strainers
Bajaj Vronze Y-Type Strainer details :

IBR Certified

With Stainless Steel (AISI 304) Screen Screwed Female Ends/Flanged Ends

To BS - 10 Table 'H'

Max. W.P - 250psig. at 220oC Temp.

HYD. Tested - 500 psig.

Size - 15mm to 50mm


Cast Iron Y Type Strainers

Cast Iron Y Type Strainers
Bajaj Cast Iron 'Y' Type Strainer details :

IBR Certified

With S.S (AISI-304) Screen

Screwed Female Ends/ Flanges Ends

Max. W.P - 13Kg/cm2 at 220oC

Test Pr. - 26 Kgf/cm2 Hyd.

Size Range - 15mm to 50mm (Screwed), 15mm to 150mm (Flanged)


Cast Steel Y Type Strainers

Cast Steel Y Type Strainers
Bajaj Cast Steel (Astma-216 Gr. WCB) Y-Type Strainer details :

With S.S. (AISI-304) Screen

Flanged Ends to BS: 10 Table 'J'

Test PR. Body - 700 psig. Hyd.

Max. Steam W.P. - 350 psig. at 454oC Temp.

Size Range - 15mm to 150mm
